Product Detail

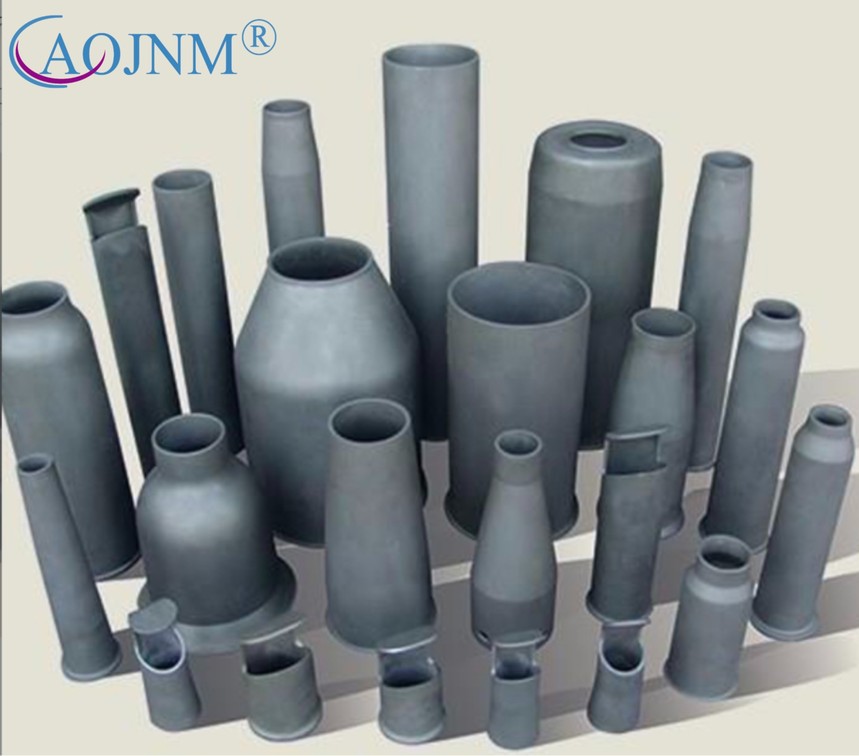

Sintered silicon carbide burner

Collect
商品说明


Product performance



Reaction sintered silicon carbide products have excellent resistance to rapid cooling, rapid heating, wear resistance, high temperature resistance and high strength.



Product use



It is suitable for various gas and oil fired kilns and can effectively control the balance of indoor temperature. It is an ideal kiln tool for tunnel kiln, shuttle kiln and roller kiln.



All silicon carbide products can be customized according to the drawings.



Technical indicators

Project

Nuit

Index

Service temperature

° C

1380

Density

g/m3

≥3.2

Porosity

%

<0.1

Flexural strength



MPa

250 (20° C)

MPa

280 (1200° C)

Modulus of elasticity



GPa

330 (20° C)

GPa

300 (1200° C)

Thermal conductivity

w/m.k

45 (1200° C)

Coefficient of thermal expansion

K-1 x 106

4.5

Mohs hardness


13

Acid and alkaline resistance


Excellent



Technical indicators

Project

Nuit

Index

Service temperature

° C

1380

Density

g/m3

≥3.2

Porosity

%

<0.1

Flexural strength



MPa

250 (20° C)

MPa

280 (1200° C)

Modulus of elasticity



GPa

330 (20° C)

GPa

300 (1200° C)

Thermal conductivity

w/m.k

45 (1200° C)

Coefficient of thermal expansion

K-1 x 106

4.5

Mohs hardness


13

Acid and alkaline resistance


Excellent
